Rated Power: 300W - 8000W
Peak Power: 600W - 16000W
Input Voltage: 12/24/48VDC
Output Voltage: 110/220VAC±5%
USB Output: 5V 2A
Type-C Output: Optional (PD30W/PD60W)
Frequency: 50Hz±3 or 60Hz±3
Output Waveform: Pure sine wave
Efficiency: Up to 94%
Protection Features: Undervoltage, overvoltage, overload, over-temperature, short circuit, reverse connection protection.

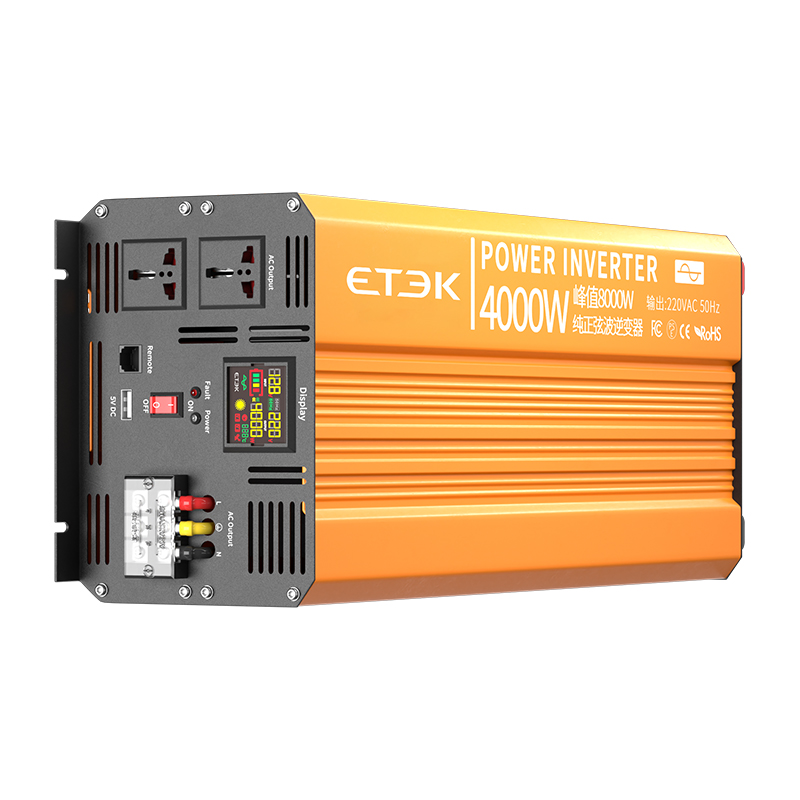

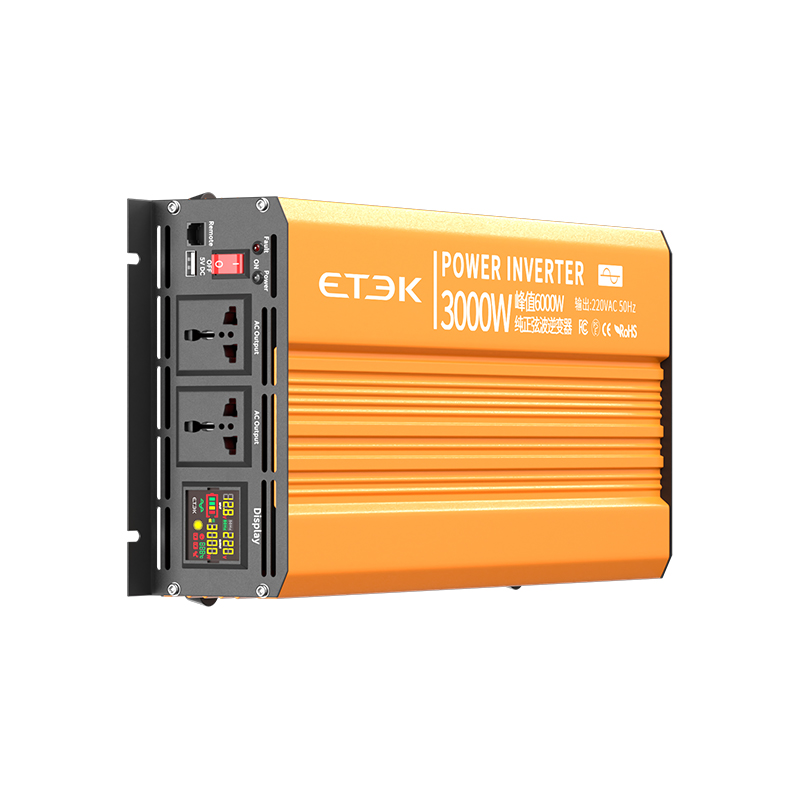

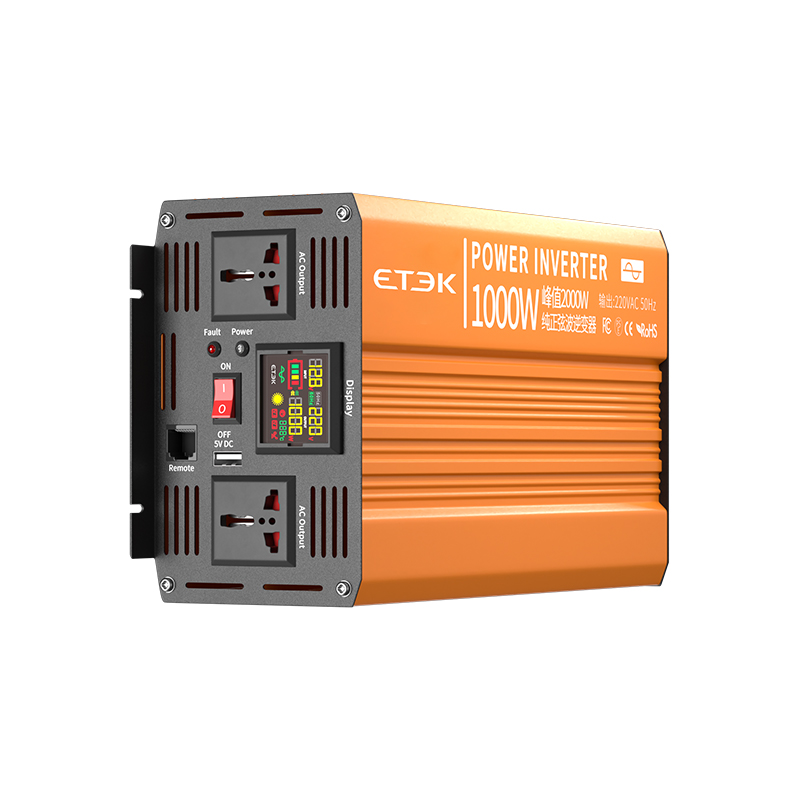

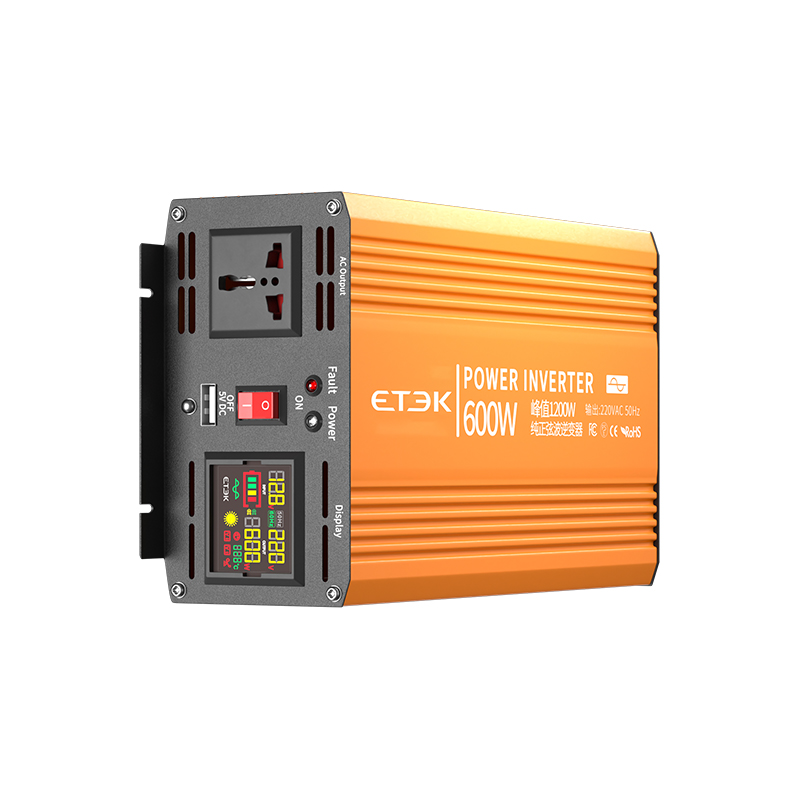

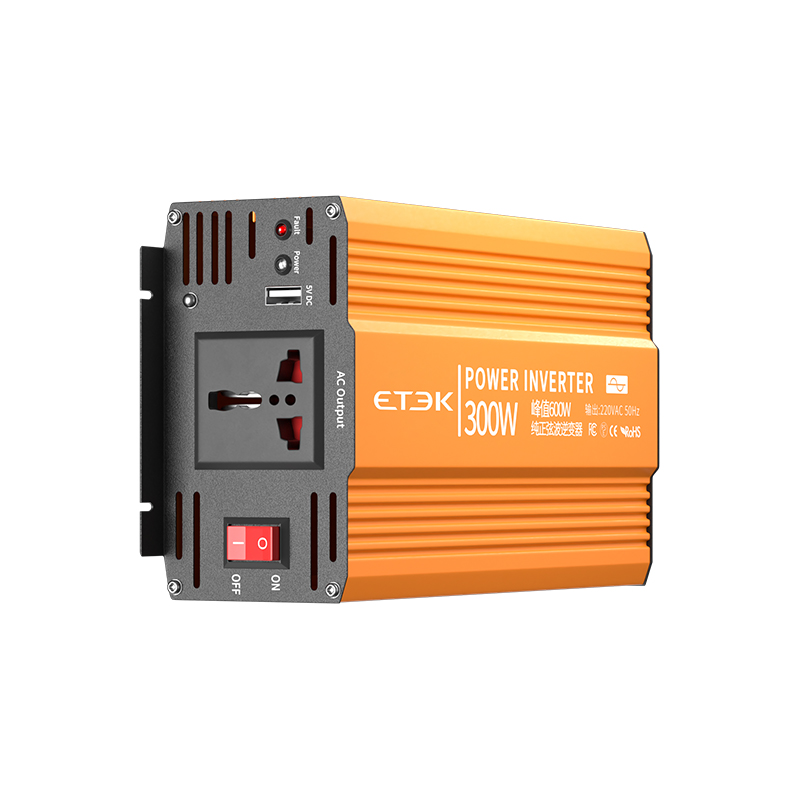

EKPE Pure Sine Wave Inverter series offers high-frequency, intelligent solutions for powering a wide range of applications. Equipped with an intelligent color display and customizable Bluetooth and wireless remote control functions, these inverters provide superior pure sine wave output, better than mains power. Ideal for running electric tools and inductive loads, the EKPE series ensures system safety with completely isolated input and output circuits. Models range from 300W to 8000W, featuring customizable input voltages and RS485 communication options, making them perfect for RVs, solar systems, and various industrial applications.
|
Rated power |
300W-8000W |
|
Peak power |
600W-16000W |
|
Input voltage |
12/24/48VDC (customizable) |
|
Output voltage |
110/220VAC±5% |
|
USB output |
5V2A |
|
Type-C output |
Optional (PD30W/PD60W) |
|
Frequency |
50Hz±3 or 60Hz±3 |
|
Output waveform |
Pure sine wave |
|
Soft start |
yes |
|
Total harmonic distortion THD |
THD＜3% (linear load) |
|
Efficiency |
Maximum 94% |
|
DC input range |
12V(10-15.5V); 24V(20-31V); 48V(40-61V) |
|
Input undervoltage alarm |
12V(10.5V±0.5V); 24V(21V±0.5V); 48V(42V±1V) |
|
Input undervoltage protection |
12V(10V±0.5V); 24V(20V±0.5V); 48V(40V±1V) |
|
Input undervoltage recovery |
12V(12V±0.5V); 24V(24V±0.5V); 48V(48V±1V) |
|
Input overvoltage protection |
12V(15.5V±0.5V); 24V(31V±0.5V); 48V(60V±1V) |
|
Input overvoltage recovery |
12V(15V±0.5V); 24V(20V±0.5V); 48V(59V±1V) |
|
Refrigeration method |
Intelligent fan |
|
Protection function |
Undervoltage,overvoltage, overload, over temperature,short circuit, reverse connection (fuse) protection |
|
Working temperature |
-10°C ~ +50°C |
